Andy Young's 1972? Class 1 - "The Heinz 57"



Date of manufacture - unknown, assumed to be between 1970 and 74

Model name - unknown

Restored and owned by Andy Young



This kart has been around for some time now, the kart was improved from the original restoration by fitting a 25mm axle and better brake and components, it was raced for three seasons and while enjoyable to drive it was not the most competitive chassis. Dimensionally it is like a late 1960's kart so when my 1974 Barracude chassis arrived I decided it was time to retire the Heinz 57 from racing and restore it again but in Vintage trim for Demonstrations and trackdays.





Technical Details of 2014 rebuild;

bullet

1" axle stepped for Nylites,  3 feet long.

bullet

After a year with a 25mm axle and KP type mechanical brake, which was a great improvement, i have gone back to the initial mechanical disc brake with floating disc but this one is and Airheart unit with cast disk.

bullet

Rear wheels are now Nylite with Vintage Speed Carlisle replica tyres.

bullet

Front stub axles are 3/4" diameter with 5/8" nuts. Wheels are 4" diameter Nylite with Carlisle replica Vintage Speed tyres.

bullet

Steering wheel is an Azusa

bullet

Tank - original (egg cup capacity!)

bullet

Seat - original

bullet

Modifications - Aluminium floor was replaced with new of thicker gauge, this was then powder coated satin black.





Rebuild 2014.

New nerf bars now discrete bolts ones rather than the welded on versions that fell off regularly.

For the initial build story parts 1 to 3 click the links below to view the PDF files

bullet

Build part 1

bullet

Build part 2

bullet

Build part 3



Technical Details of original restoration;

bullet

1" axle 3 feet long.

bullet

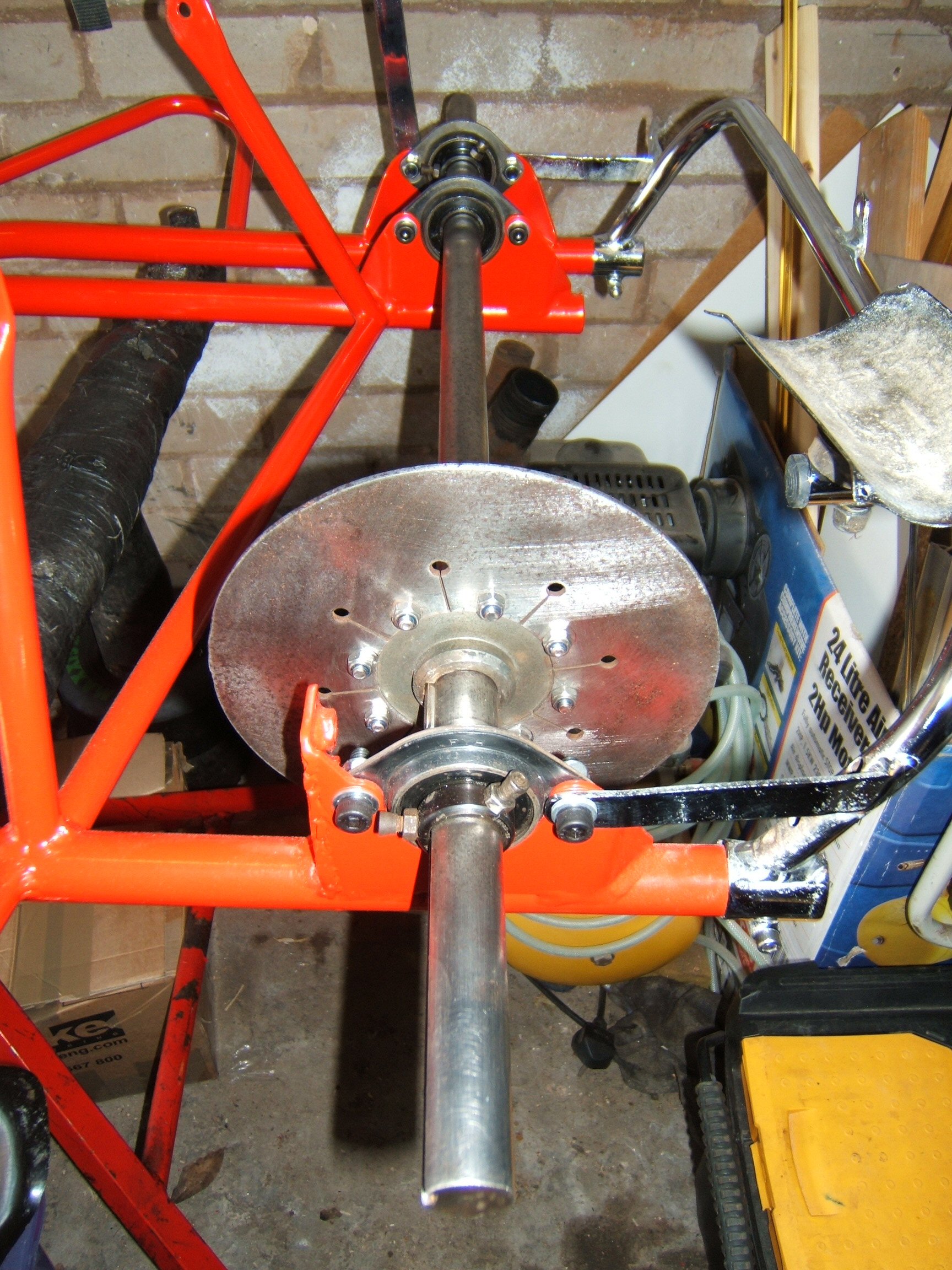

Mechanical disc brake with floating 1/8" thick steel disc on steel carrier, uses Norton Commando pads, this brake is a retro fit as the bracket was obviously added later, original may have been a drum.

bullet

Rear wheels are cast Zip split rims 6 1/2" wide fitted with Vintage Speed Goodyear replica tyres.

bullet

Front stub axles are 3/4" diameter with 5/8" nuts. Wheels are 5" diameter 4" wide splits, cast Zip inners and Nova Nylon outers on DK hubs with rear wheel PCD. Kart originally fitted with 4" Nylite wheels with taper roller bearings, when a set of good and safe 4" front tyres are available they will be re-fitted.

bullet

Steering wheel is an Azusa

bullet

Tank - original (egg cup capacity!)

bullet

Seat - original

bullet

Modifications - Aluminium floor was replaced with new of same gauge, but this may not have been original in the first place. Leather steering wheel bush replaced with a home made nylon unit. The nerf bars are as I got the kart but do not look original. The bumpers were originally painted silver not chrome. A small bracket was welded on the rear bumper to support the exhaust.

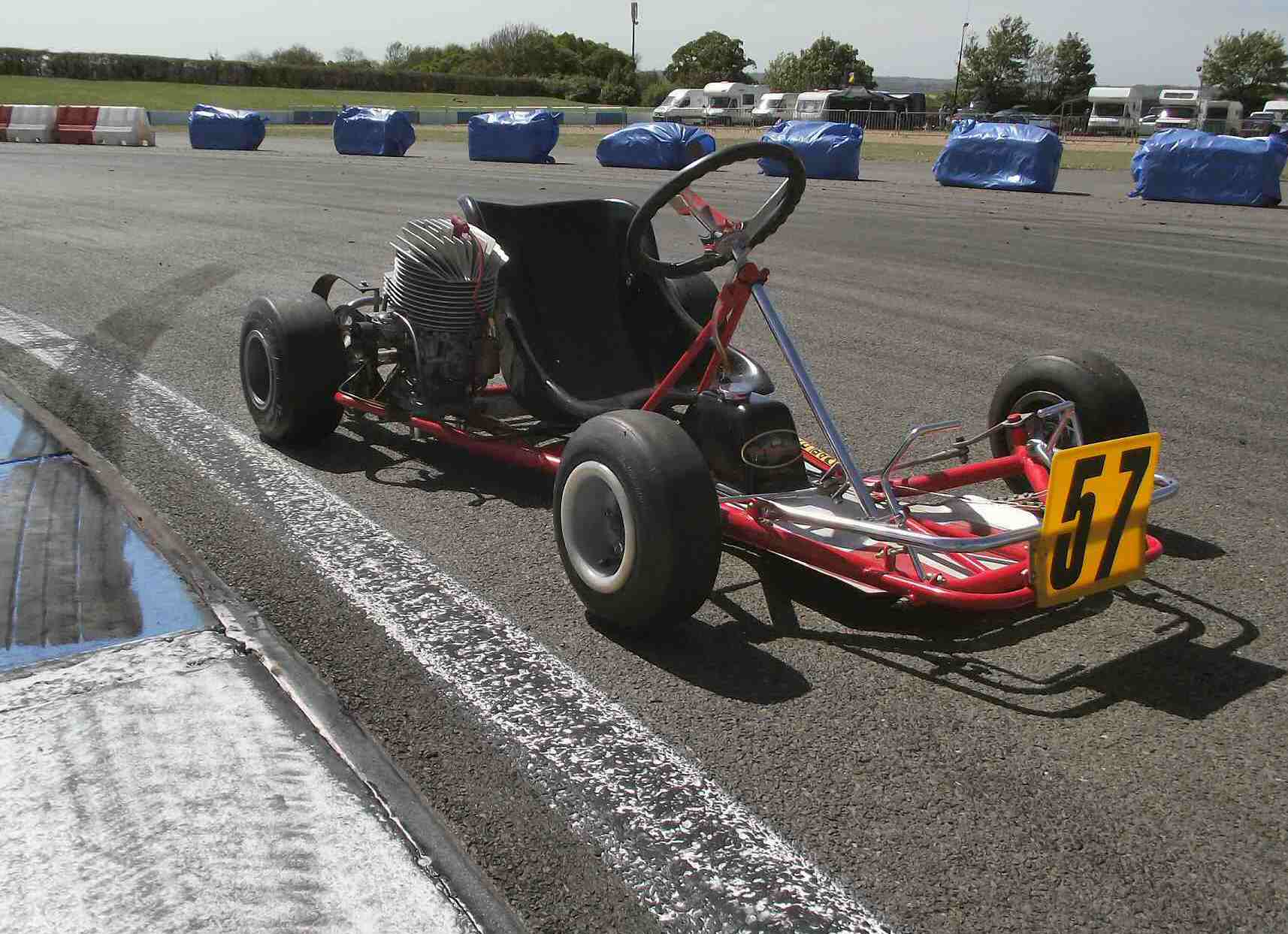

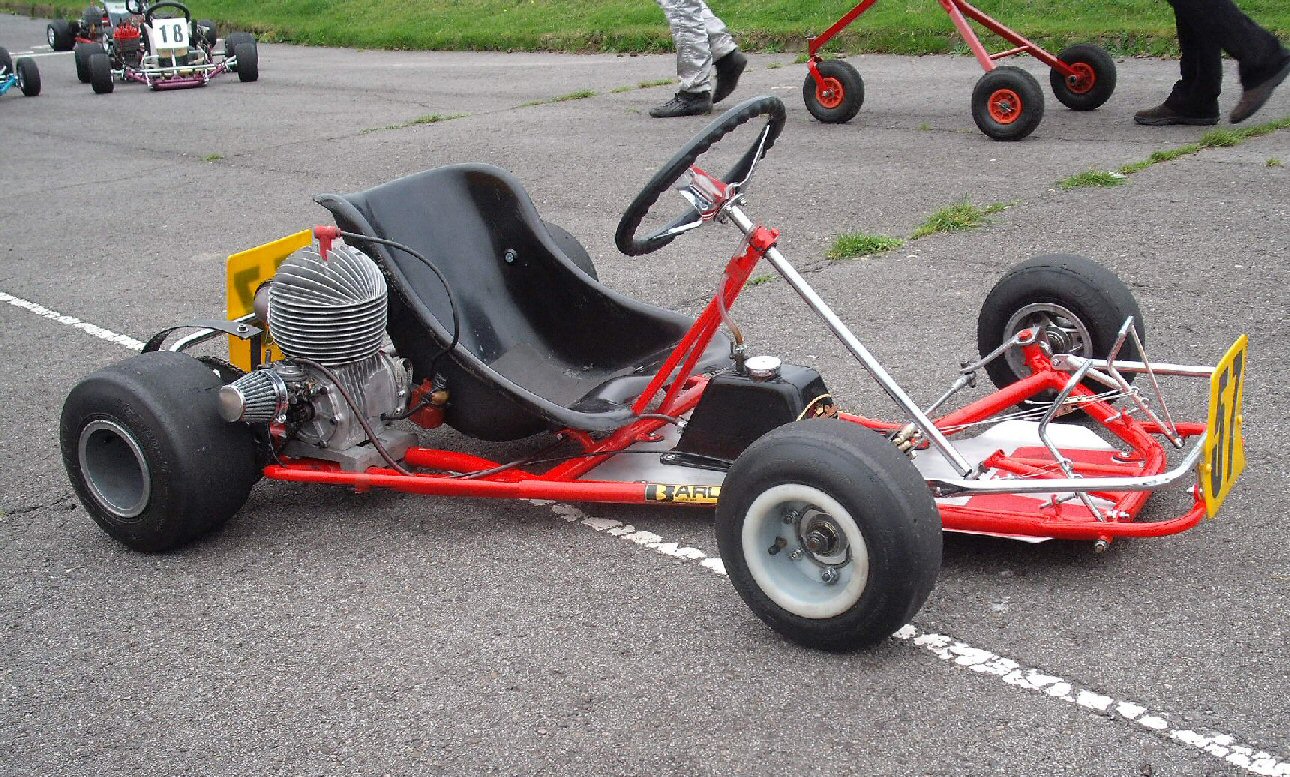

At Shenington 2011 fitted with Vintage Speed 4" tyres on the original Nylite wheels

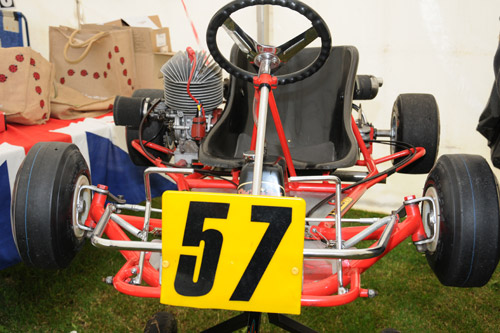

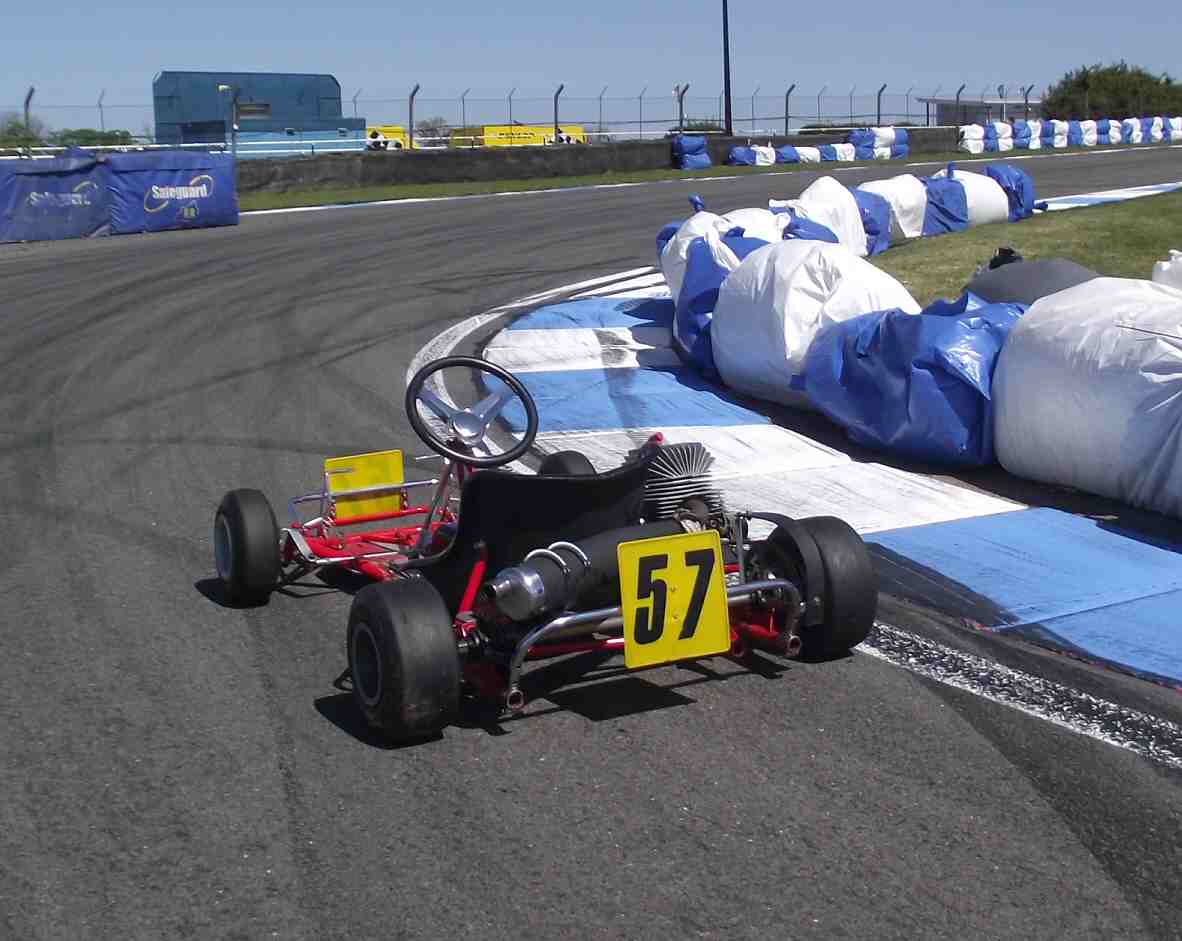

Above and below, Donington Historic Festival 2011, with K77 and 4 1/2" VST rear tyres.

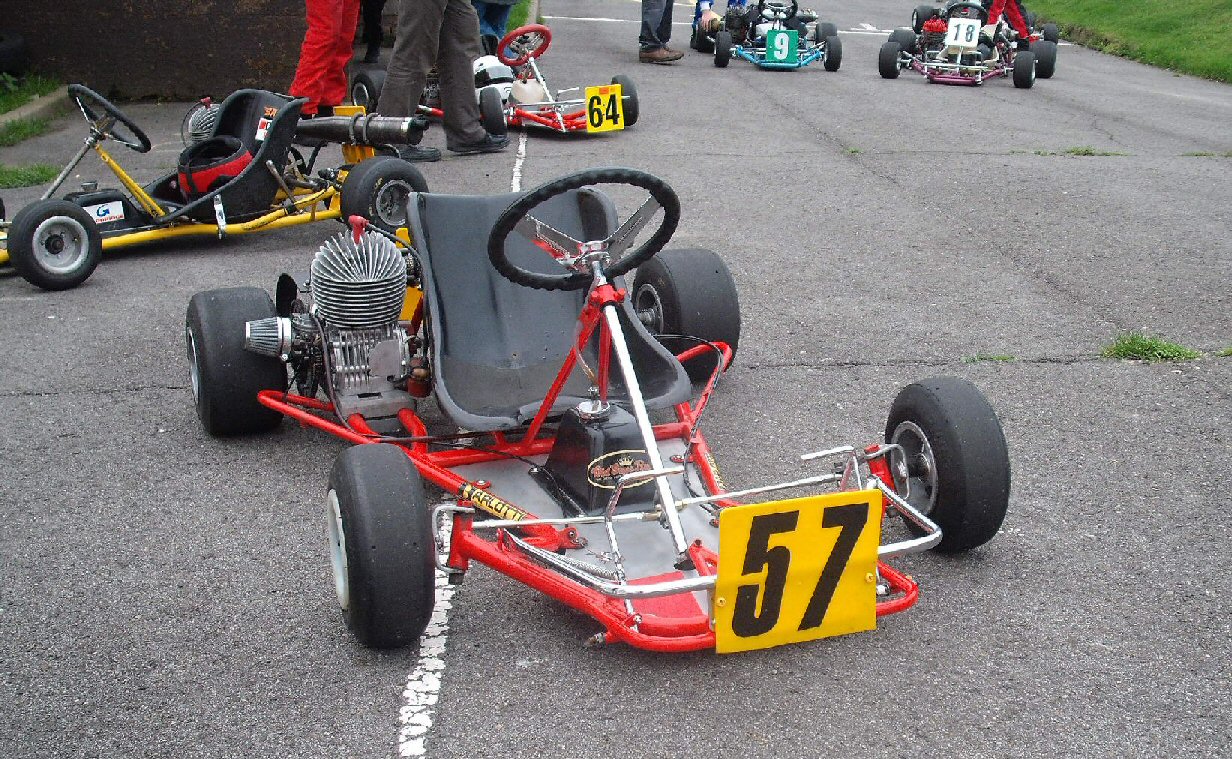

Class 1's at Strubby October 2010

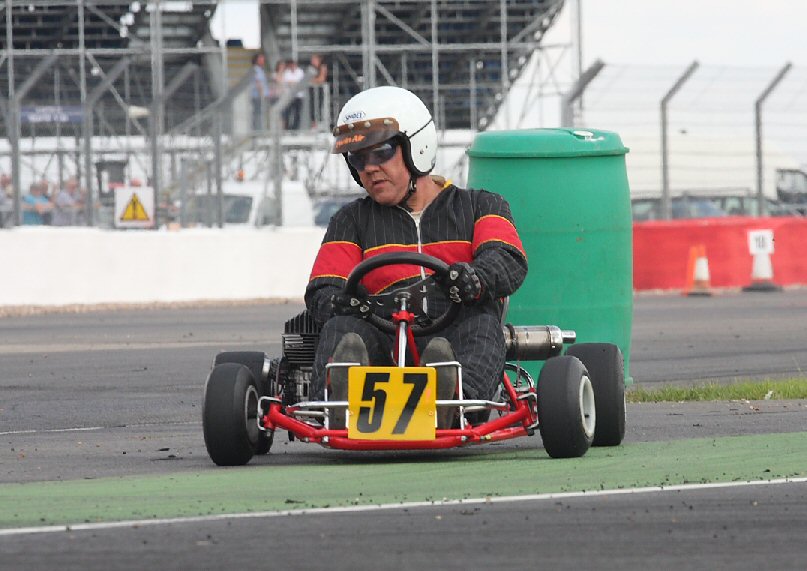

At Silverstone Classic 2010

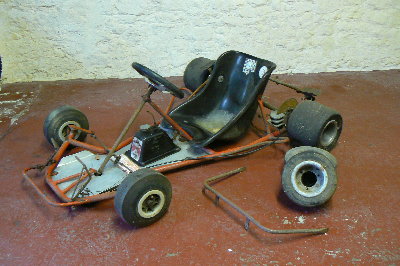

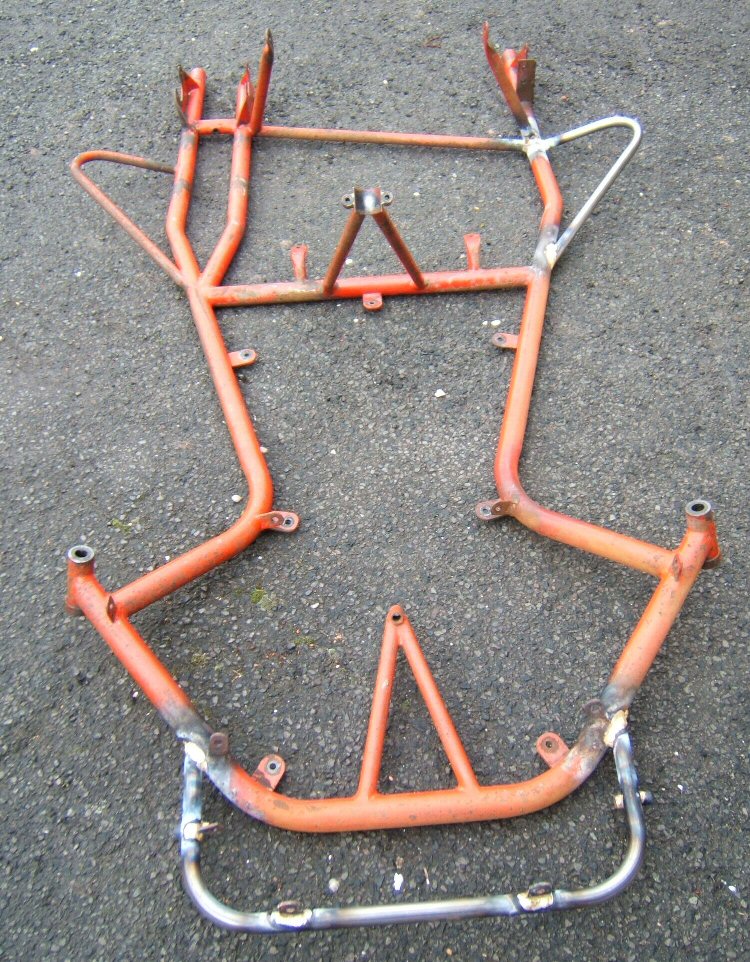

After 30 Years in a shed

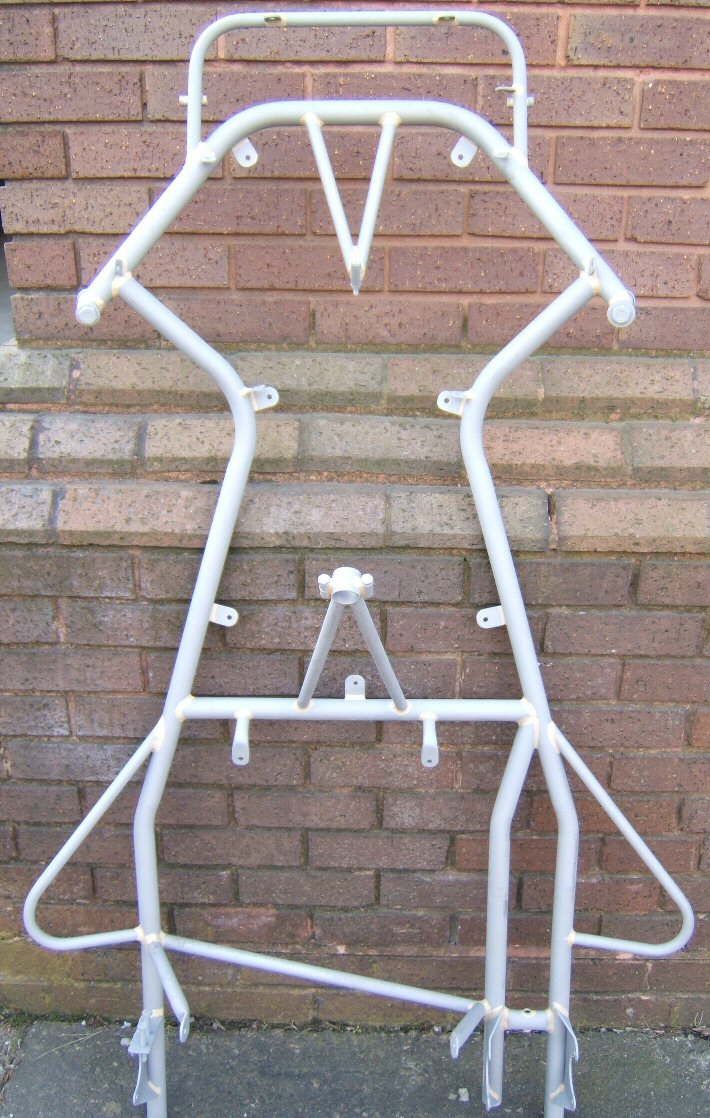

After fabrication at BRT and then bead blasted.

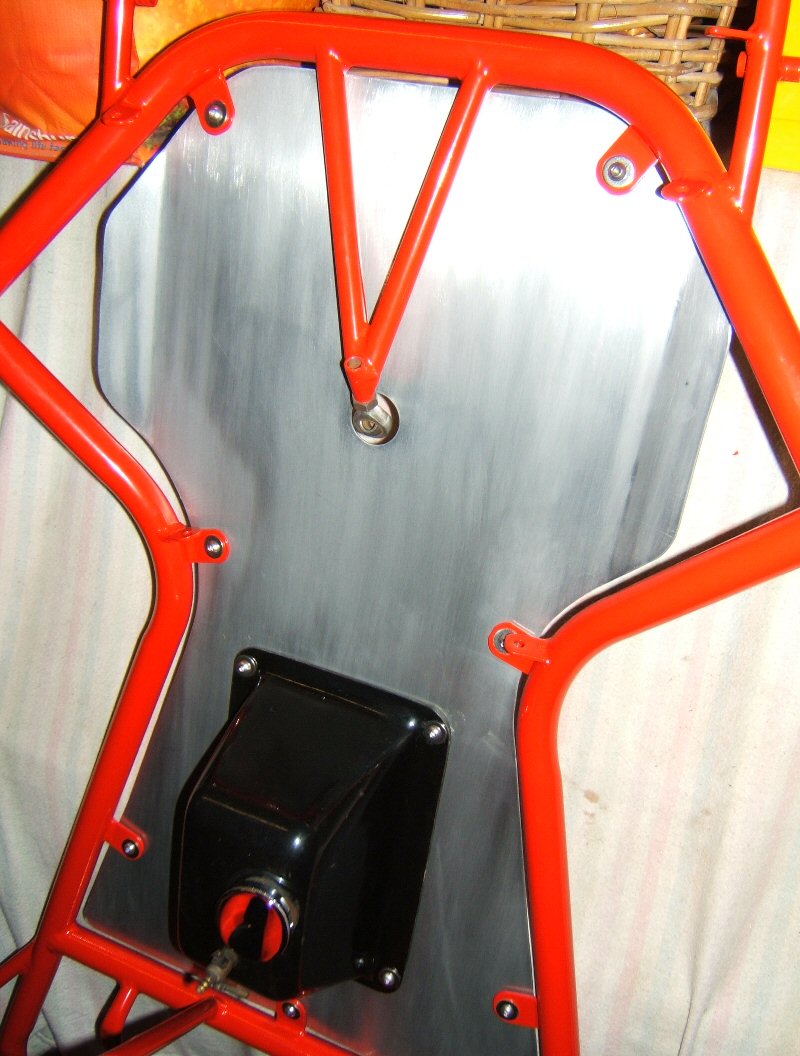

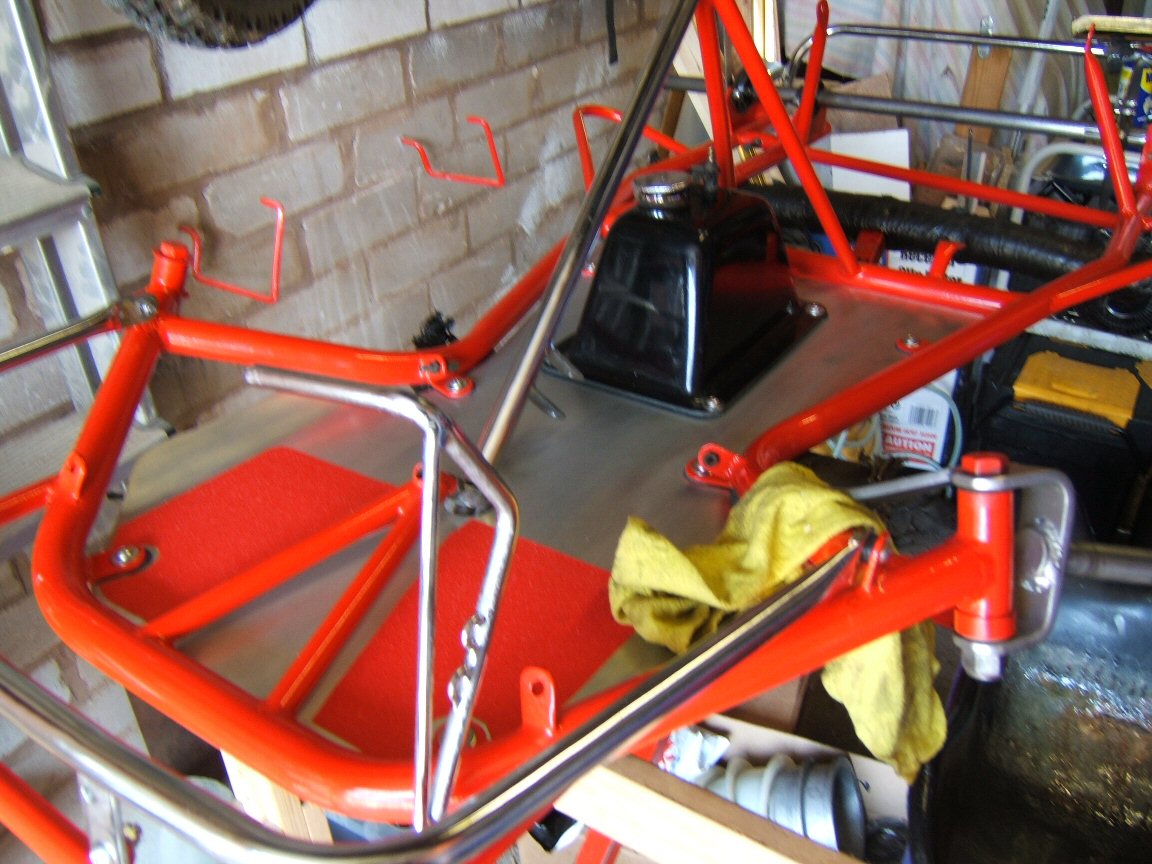

Red powder coat, new floor tray and cleaned up tank.
